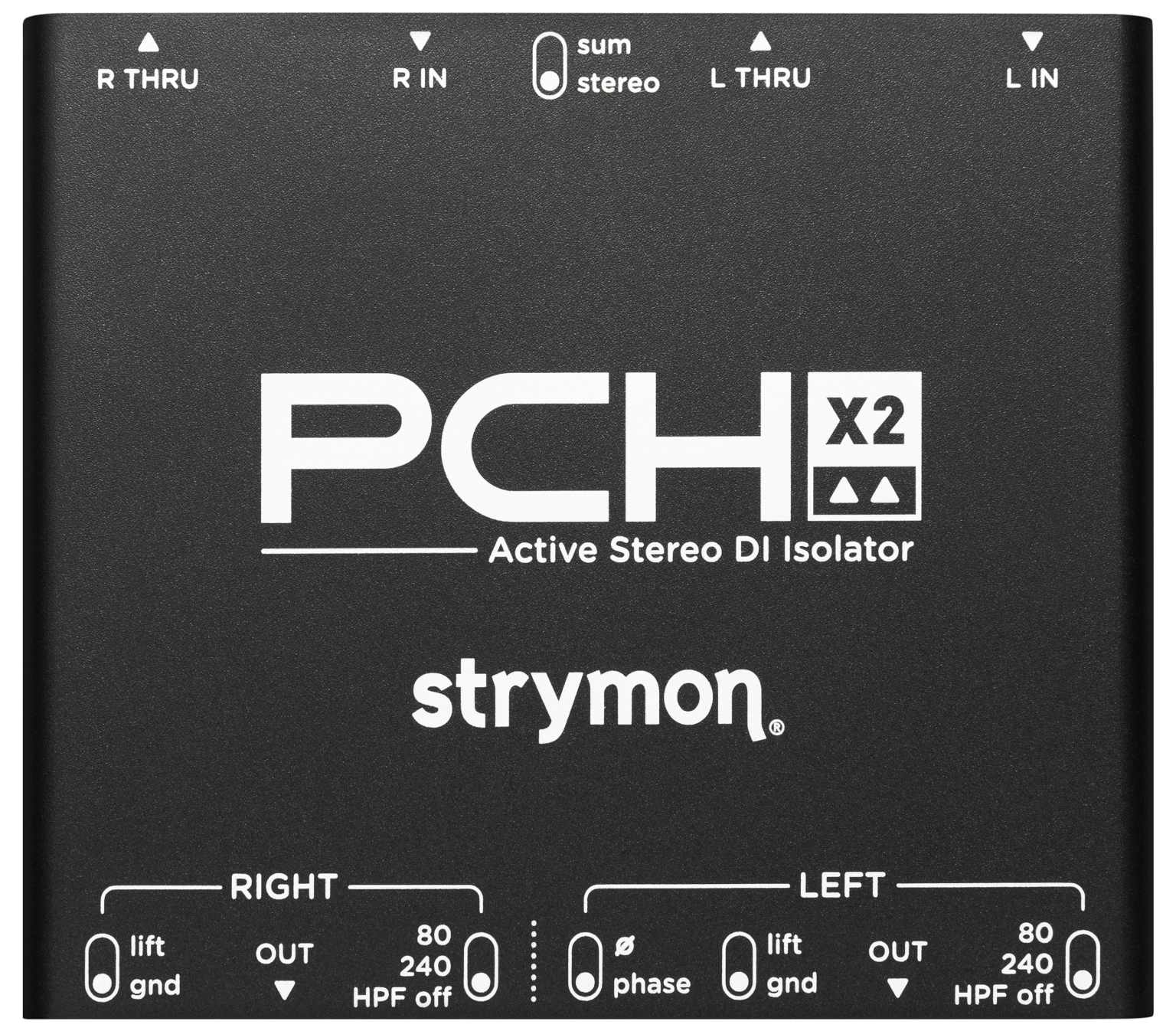

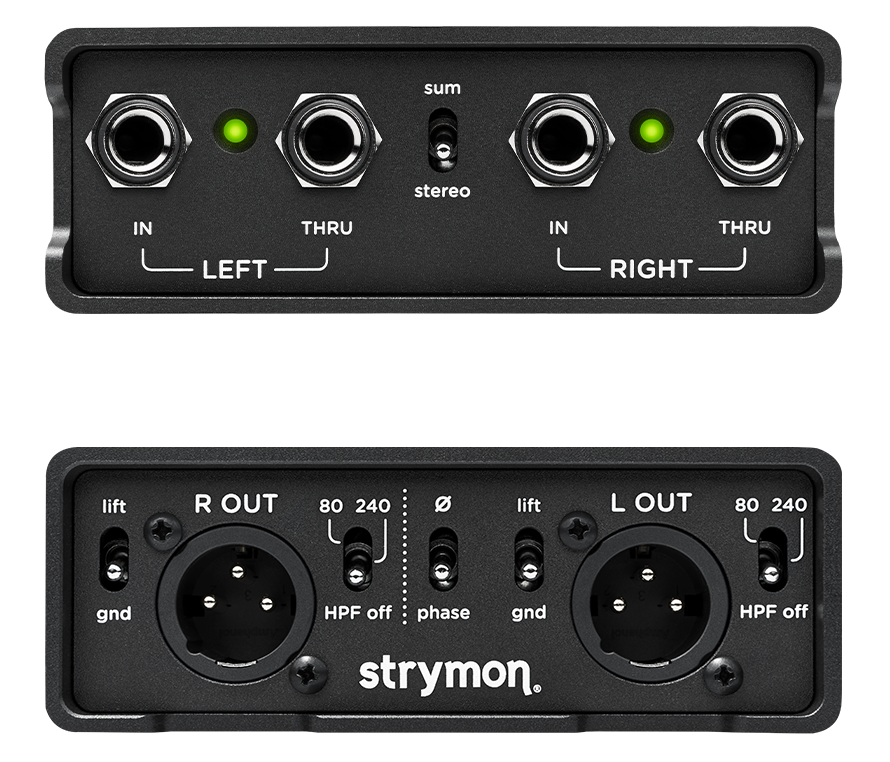

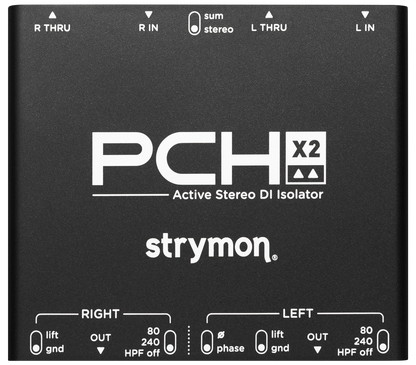

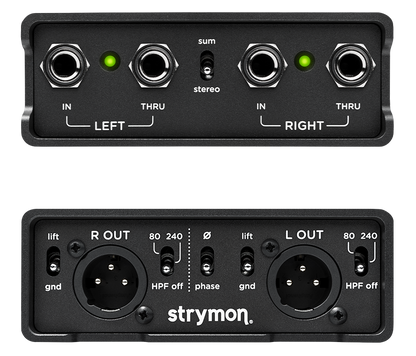

Strymon PCH X2 Active Stereo DI Isolator

This new DI box will ship insured and inspected from our Rapid City, SD location.

Buy risk free with our 14 day - full refund, less shipping, return policy.  Check out our shop policies for more details.

Pristine Stereo Audio Clarity: Strymon PCH X2 Active Stereo DI Isolator at Haggerty's Music

Don't let signal degradation ruin your stereo performance. Available now at Haggerty's Music, the Strymon PCH X2 Active Stereo DI Isolator is the ultimate tool for musicians and sound engineers who demand absolute sonic purity for their stereo rigs, keyboards, or dual-instrument setups.

Engineered with a massive 2 MΩ input impedance, the PCH X2 captures every nuance of your instrument without loading down its natural tone. It delivers a staggering frequency response and an ultra-low noise floor (-123 dBu), guaranteeing that your signal remains transparent, uncolored, and free from unwanted harmonic distortion.

Need to consolidate your signal or clean up a muddy mix? The PCH X2 features a selectable High-Pass Filter (80Hz, 240Hz) to easily eliminate low-end rumble right at the source, as well as a powerful SUM feature that seamlessly collapses your stereo inputs into a mono signal. Powered by standard +48V phantom power per channel and housed in a rugged, pedalboard-friendly chassis, this active direct box ensures studio-grade audio in any live or recording environment.

Why You'll Love It:

• True Stereo Performance: Dual-channel design is perfect for stereo synthesizers, amp modelers, or running two separate instruments simultaneously.
• Uncolored Tone: A 2 MΩ input impedance preserves the natural high-end and dynamic feel of your gear without loading down your signal.
• Convenient SUM Routing: Easily sum your stereo signals into a mono output when venue PA channels are limited.
• Studio-Grade Transparency: Exceptionally low Total Harmonic Distortion (0.0007% at 1kHz) and a -123 dBu noise floor keep your sound crystal clear.
• Built-in Rumble Control: Features an integrated High-Pass Filter (HPF) at 80Hz or 240Hz to easily cut out unwanted low frequencies.

Technical Specifications:

Input & Thru

• Input Impedance: 2 MΩ (When SUM enabled: 4 kΩ)
• Max Input Level: +20.5dBu
• Thru Gain Relative to Inputs: +0dB (When SUM enabled: -6dB)
• Thru Output Impedance: 0Ω (When SUM enabled: 1 kΩ)

XLR Out & Audio Performance

• Output Impedance: 100 Ω
• Gain Relative to Inputs: -20dB
• Maximum Output Level: +0.5dBu
• Noise Floor: -123 dBu (10-22kHz no A-Weight)
• Frequency Response (HPF off):
• +/- 0.25dB, 20Hz – 30kHz (13.6KΩ load)
• +/- 0.5dB, 10Hz – 80kHz (13.6KΩ load)
• +/- 0.5dB, 20Hz – 20kHz (600Ω load)
• Filter: HPF (80Hz, 240Hz)
• Total Harmonic Distortion & Noise (-10dBu out):
• 1kHz: 0.0007%
• 100Hz: 0.0035%
• 50Hz: 0.0125%

Power & Dimensions

• Power Requirements: 5mA @ +48VDC (per channel)
• Dimensions: 3.66″ L (93mm) x 4.20″ W (107mm) x 1.54″ H (39mm)

Protect your stereo tone and transform your live or studio performance. Get the Strymon PCH X2 Active Stereo DI Isolator today at Haggerty's Music!
