Line 6 HX Stomp Multi-Effects Processor with Double Switch Attachment - Used

-YOU ARE VIEWING PHOTOS OF THE ACTUAL GUITAR PEDAL BEING SOLD!

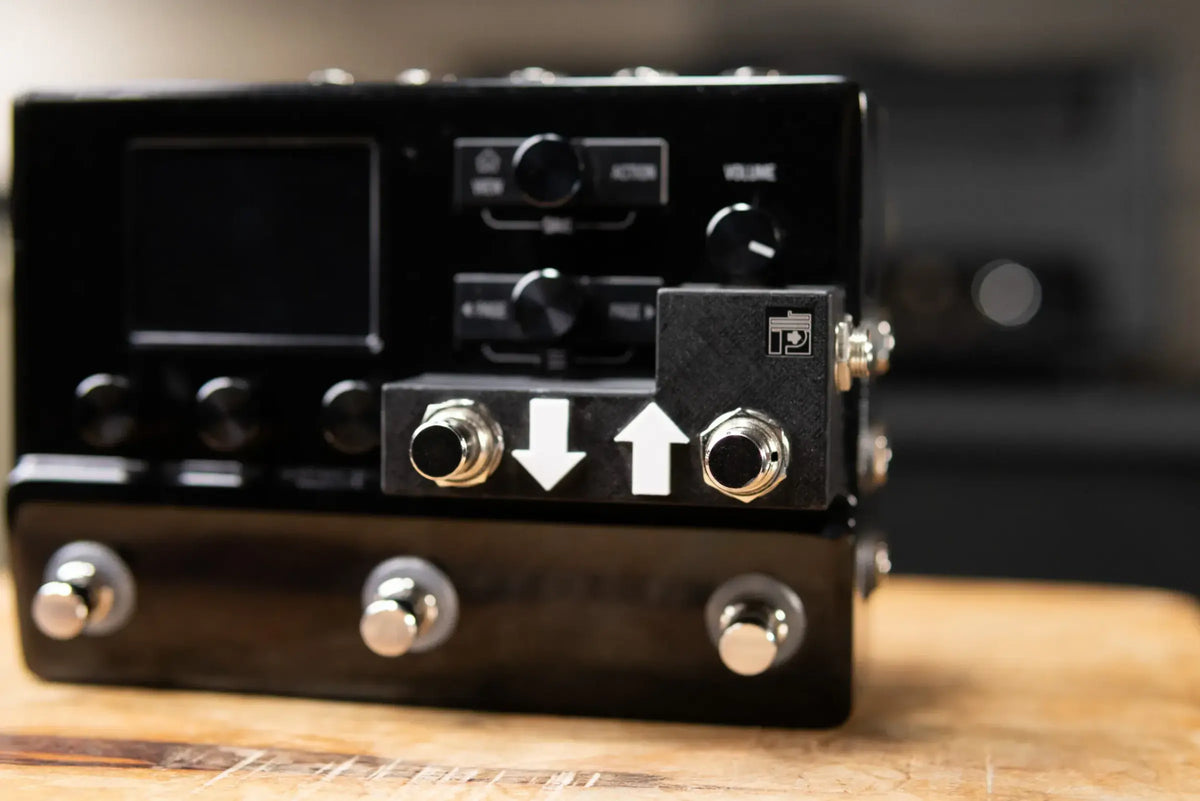

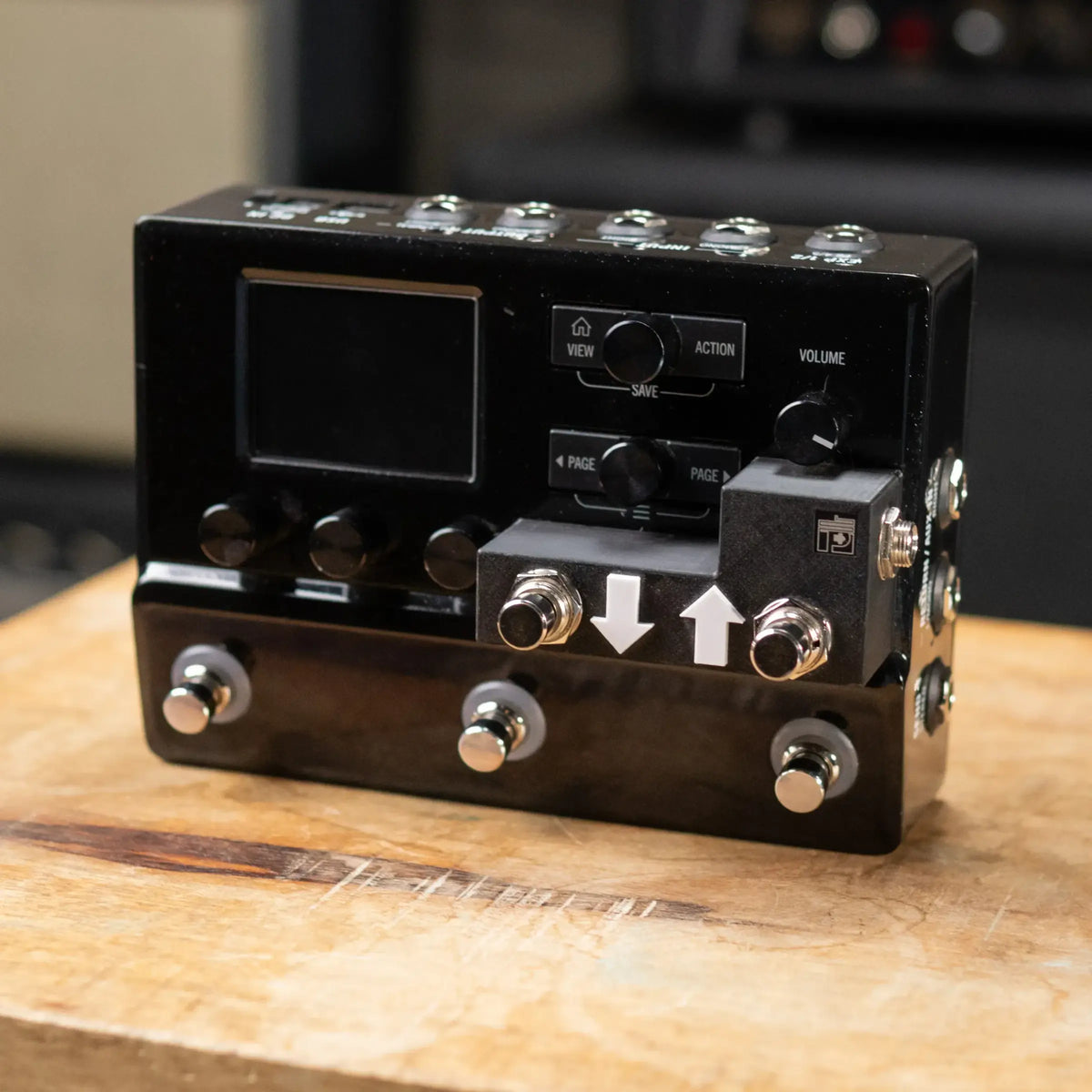

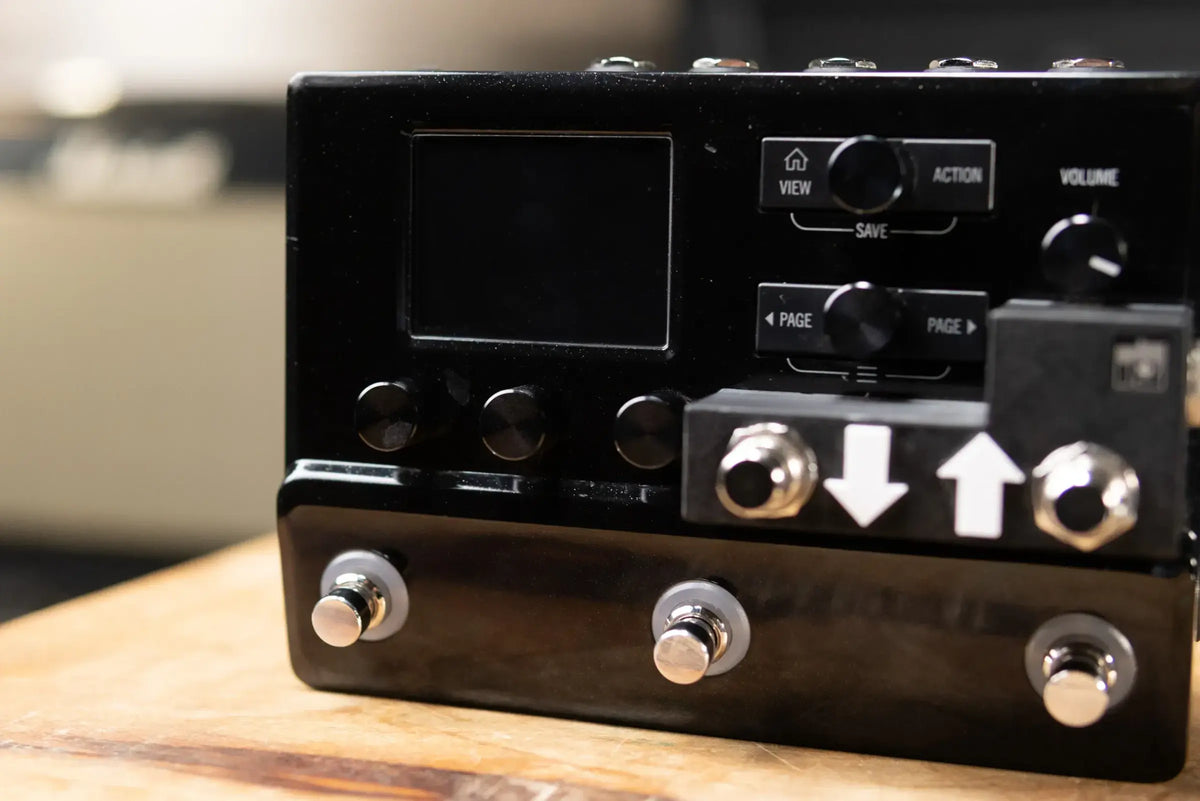

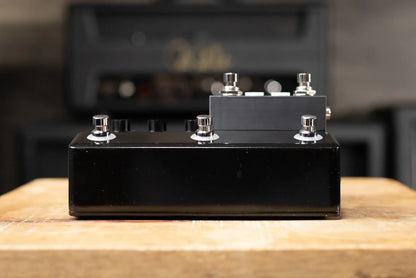

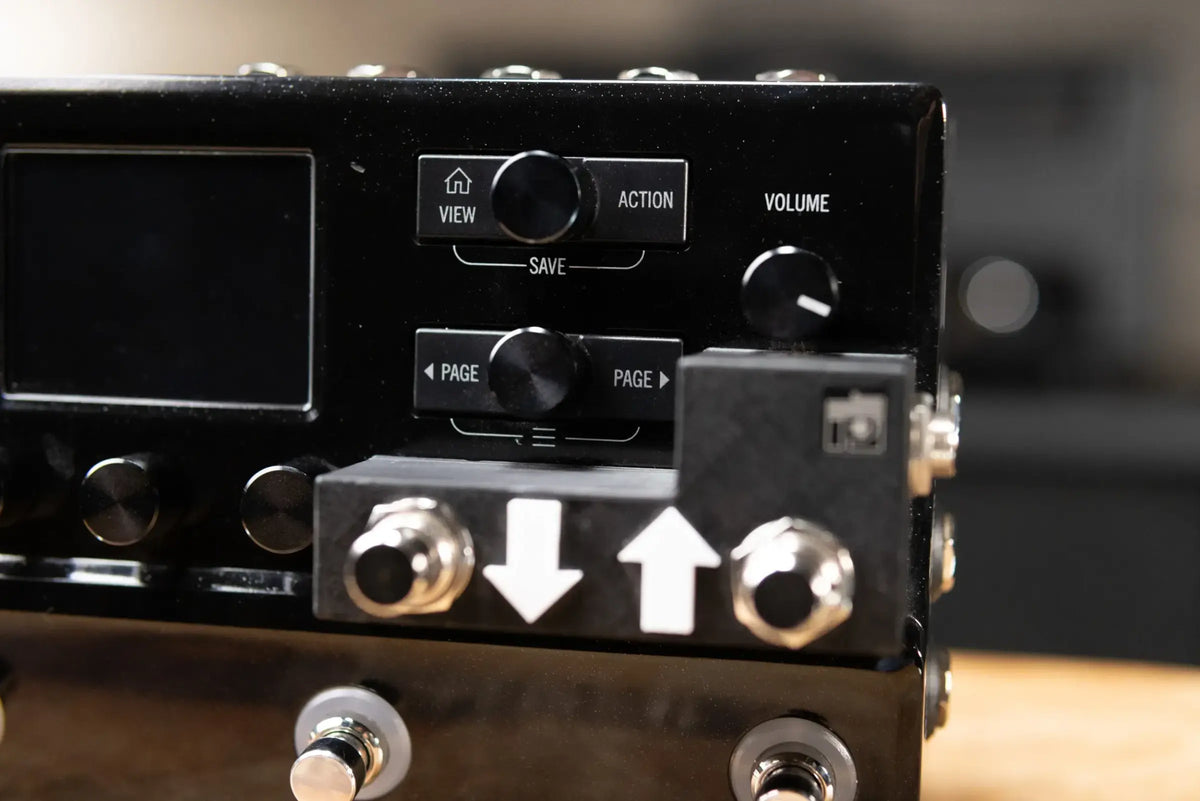

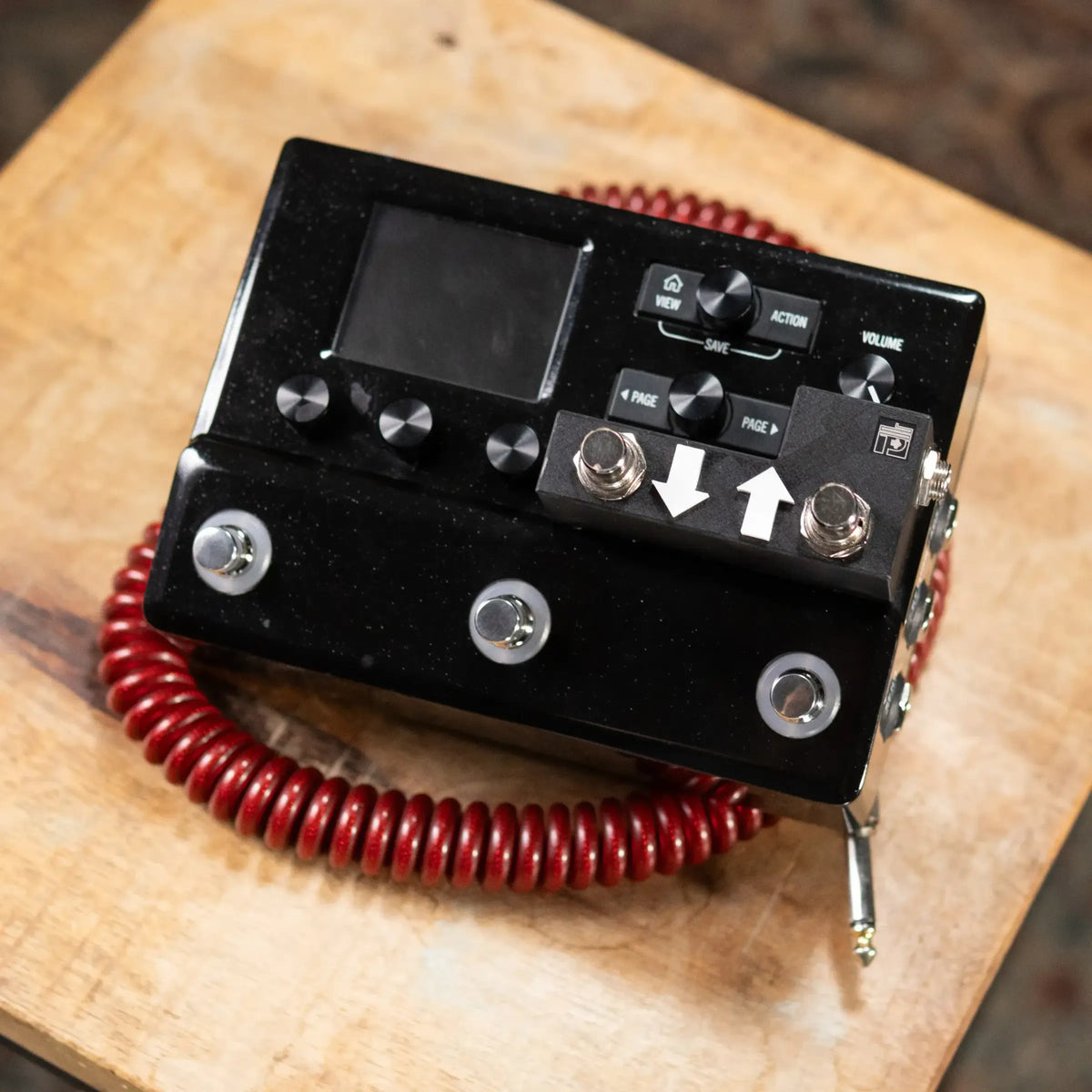

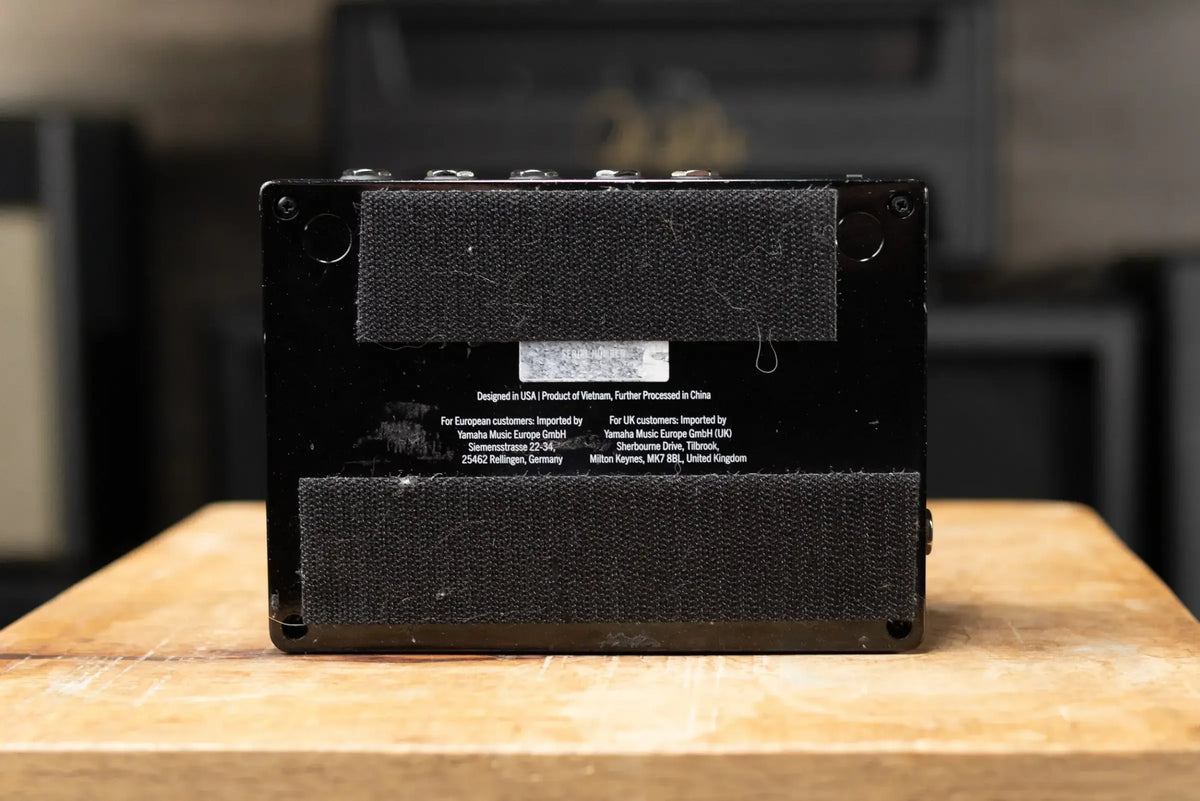

This used Line 6 unit will ship insured and inspected from Rapid City, SD. This pedal is in excellent condition with a light nick on the top of the unit, to the right side of the display screen, along with some light scuffing and velcro pre-attached to the bottom. This pedal also has a double-switch attachment firmly secured to the top of the unit.

Buy risk free with our 14 day - full refund, less shipping, return policy.  Check out our shop policies for more details.

A modern guitarist or bassist shouldn't need to choose between a compact pedalboard and the flexibility of a full modeling rig, and this used Line 6 HX Stomp was designed to put both approaches into one remarkably small platform. Drawing its core HX Modeling technology from the larger Helix family, the HX Stomp can serve as a multi-effects processor, amp-and-cab modeling rig, pedalboard expansion unit, recording interface, travel or backup rig, or the centerpiece of a direct-to-PA setup. Its combination of amp, cabinet, effects, and impulse-response processing makes it equally useful for guitar, bass, acoustic instruments, and keys.

The HX Stomp's real strength is how easily it adapts to different rigs. Its library draws from Helix, M-Series, and legacy Line 6 effects, covering drive, distortion, compression, modulation, delay, reverb, pitch shifting, filtering, wah, and more alongside an extensive selection of modeled amplifiers and cabinets. Presets can be built for direct recording or PA use, traditional amplifiers, or four-cable-method configurations that place different effects before and after an amplifier's preamp. Snapshot functionality makes it possible to change multiple parameters within a preset for different sections of a song, while third-party impulse-response support and flexible routing allow deeper customization for players building highly specific sounds.

The same flexibility carries into studio and MIDI-based setups. HX Stomp functions as a multichannel USB audio interface, supports MIDI In and Out/Thru, provides an effects loop for incorporating external pedals, and offers an expression/footswitch connection for expanded control. Stereo connectivity makes it particularly capable for spacious delays, modulation, reverbs, and dual-path rigs, while selectable bypass options help it integrate into an existing pedalboard. Whether it is being used for a streamlined fly rig, progressive and modern-metal presets, ambient sound design, conventional blues and rock amp tones, bass processing, or as an all-purpose studio tool, the HX Stomp packs much of the Helix ecosystem into a format designed to fit on a working pedalboard. This used HX Stomp is available at Haggerty's Music and includes a double-switch attachment firmly mounted to the top of the unit, expanding hands-free control beyond the three onboard footswitches.

Features / Specs

Highlights

• Effect Type: Multi-Effects Processor, Amp/Cab Modeler, and USB Audio Interface
• Condition: Used
• Modeling Platform: Line 6 HX Modeling
• Processor: 450MHz SHARC DSP
• Instrument Compatibility: Guitar, Bass, Acoustic Instruments, and Keyboards

Controls

• Footswitches: 3 Capacitive-Touch Footswitches with Color-Coded LED Rings
• External Switching: Included Double Switch Attachment for Expanded Foot Control
• Snapshots: 3 Snapshots per Preset
• Presets: 126 Presets, Arranged as 42 Banks x 3
• Expression Control: TRS Expression Pedal / Footswitch Input
• Editing: Onboard Editing with Capacitive-Touch Footswitch Integration
• Computer Editing: HX Edit for Preset Management, Editing, and IR Loading

Signal / Electronics

• Signal Processing: Digital
• Modeling: HX Modeling Derived from the Helix Family
• Effects Library: 200+ Helix and Legacy Effects; Source Material Also Describes More Than 300 Combined Effects and Models
• Effects Types: Distortion, Delay, Reverb, Modulation, Pitch Shift, Synth/Filter, Compressor/Limiter, Wah, and More
• Amp Modeling: 80+ Amplifier Models
• Cabinet Modeling: 60+ Cabinet Models with 3D Mic Placement via HX Edit 3.50
• Simultaneous Processing: Up to 8 Blocks per Preset
• Impulse Responses: Dual IR Block, Third-Party IR Support, Storage for Up to 128 IRs
• Looper: Up to 60 Seconds Mono or 30 Seconds Stereo; 1-Switch and Shuffling Looper Options
• Bypass: Switchable Analog or DSP Bypass
• Audio Interface: Multichannel USB Audio Interface with 8-In / 6-Out USB Configuration
• Maximum USB Audio Resolution: 24-Bit / 96kHz

Connectivity

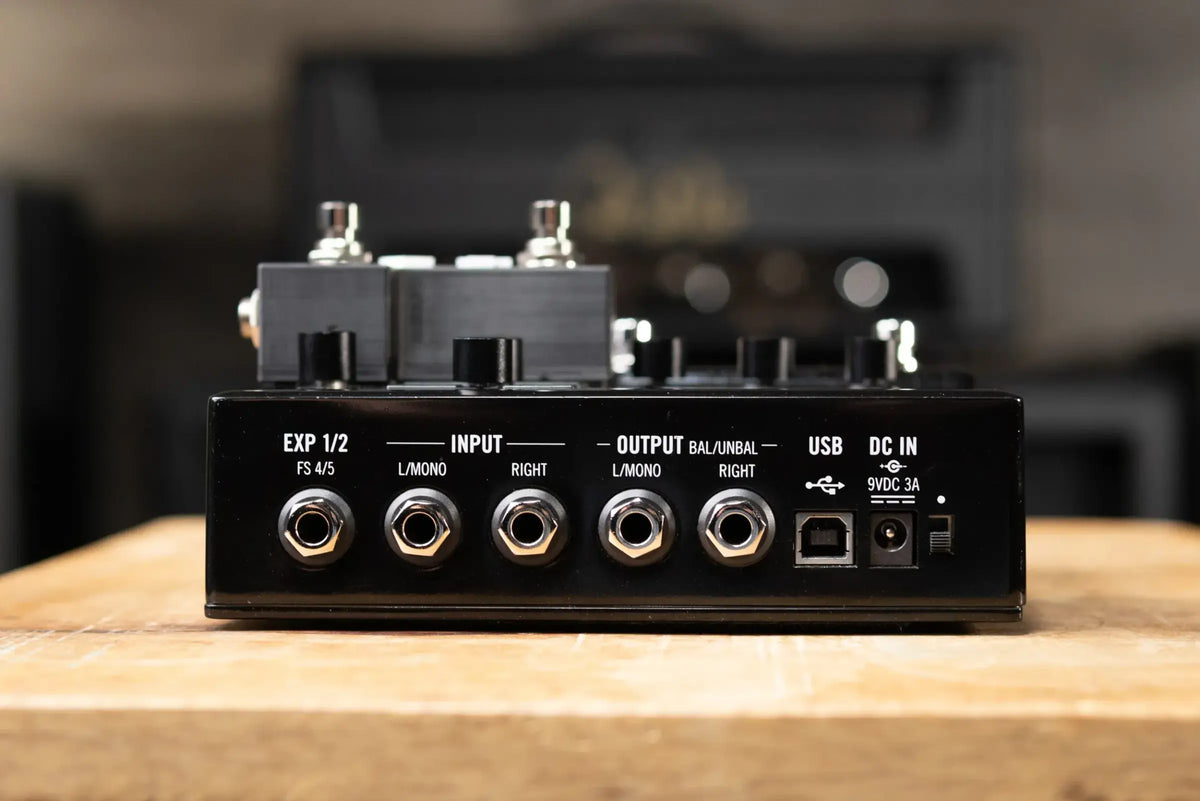

• Main Inputs: 2 x 1/4" L/Mono and Right
• Main Outputs: 2 x 1/4" L/Mono and Right

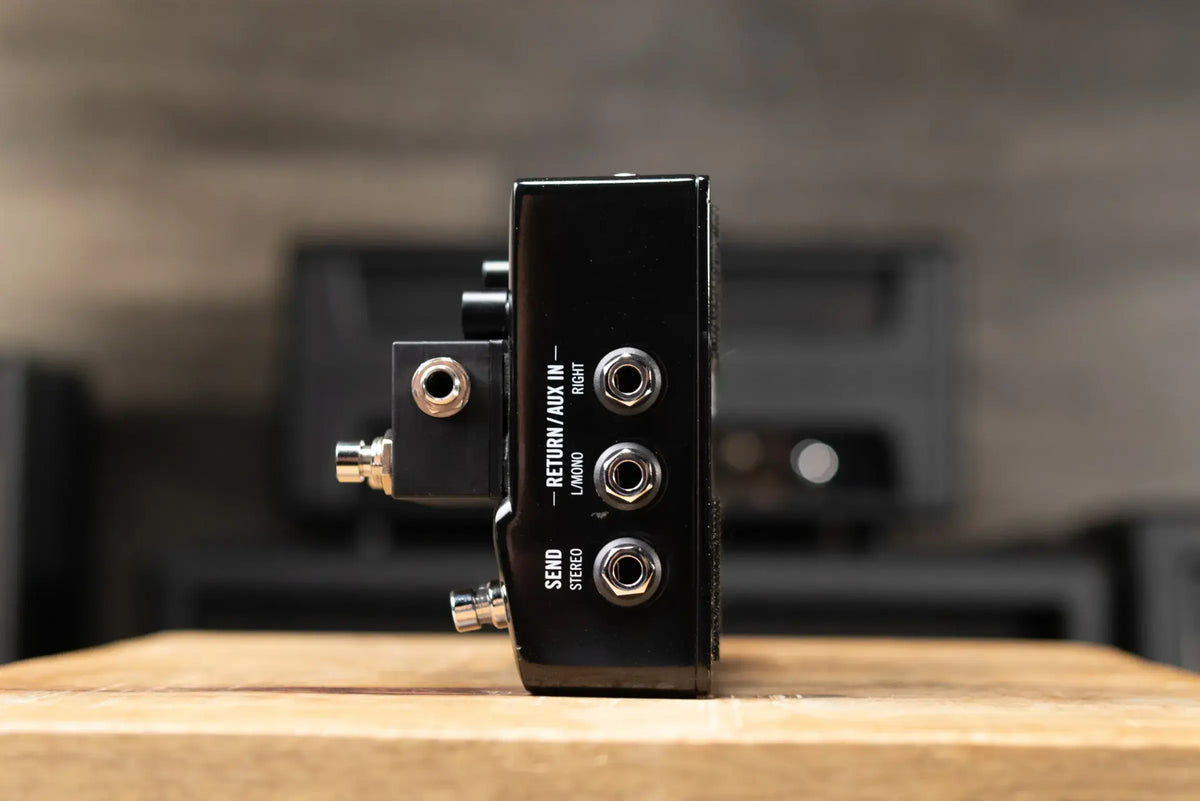

• Effects Loop: Stereo-Capable Send/Return Connectivity for External Effects and Four-Cable-Method Integration
• Headphone Output: 1 x 1/4"

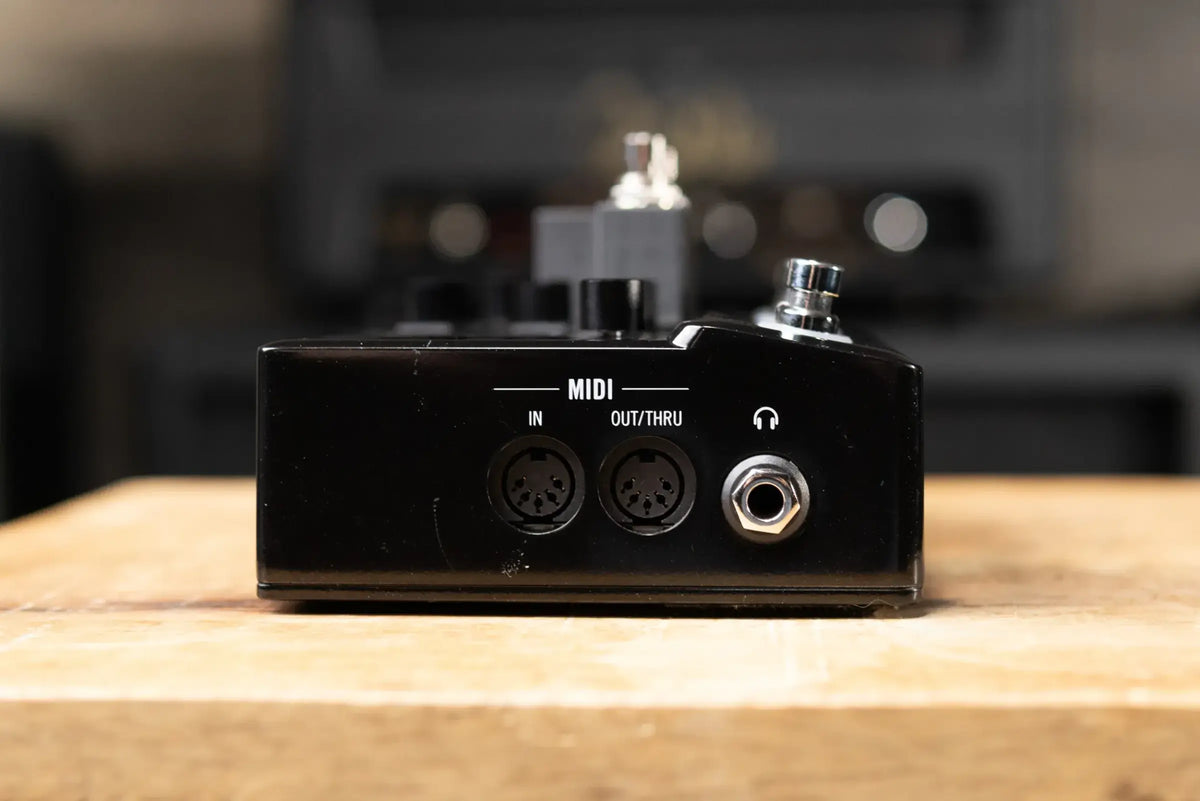

• MIDI: MIDI In and MIDI Out/Thru
• Expression / Footswitch: 1 x 1/4" TRS
• USB: 1 x USB Type-B
• Four-Cable Method: Supported
• Stereo Operation: Supported
• Power Source: 9V DC Power Supply (Not Included)

Construction

• Width: 7.01"
• Depth: 4.96"
• Height: 2.6"
• Format: Compact Pedalboard-Friendly Enclosure

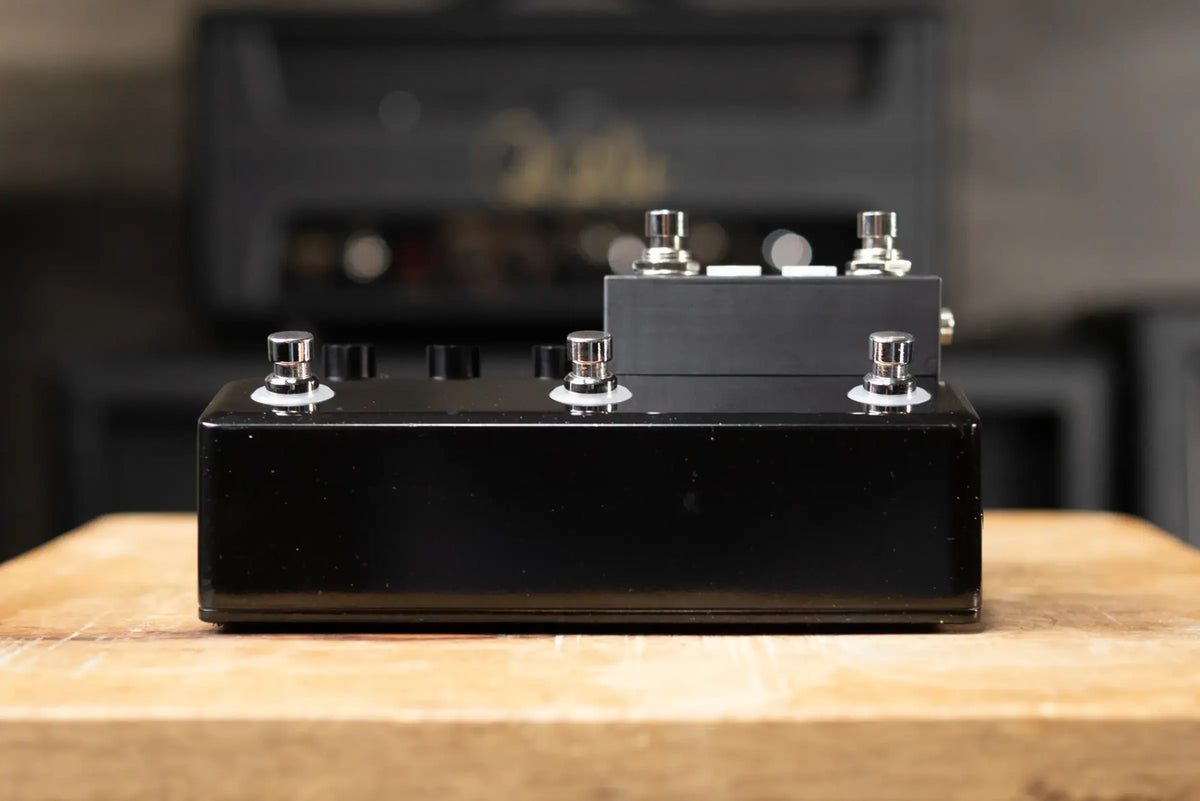

• Onboard Footswitches: 3 (Plus 2 from Switch Attachment)
• Footswitch Indicators: Color-Coded LED Rings

Miscellaneous

• Software: Line 6 HX Edit
• Third-Party IR Support: Yes
• Accessories: Double Switch Attachment Firmly Attached to Top of Pedal
