Charvel American Neo-Classic San Dimas Style 1 SD1 HH FR MPL Electric Guitar - Racing Red with Gig Bag

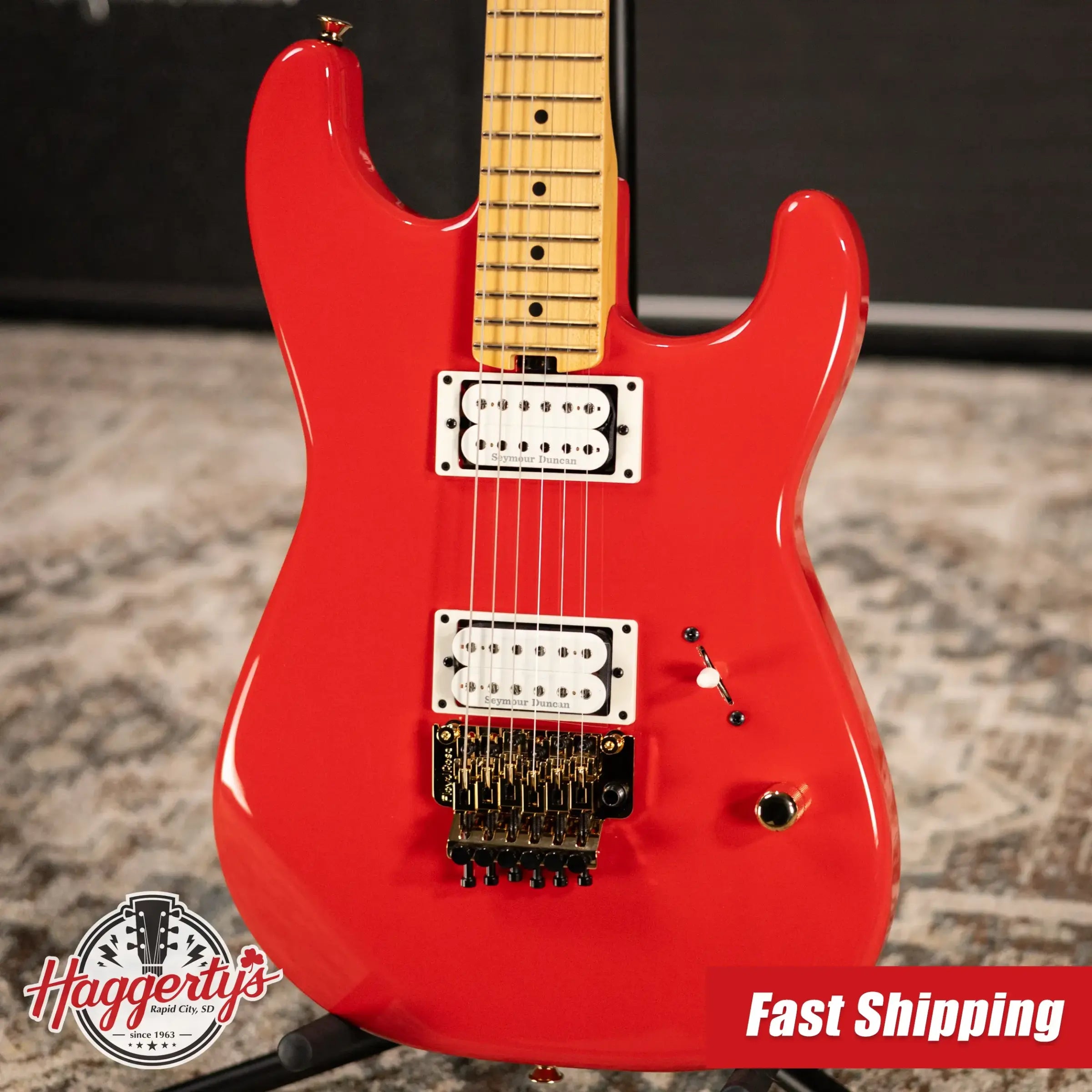

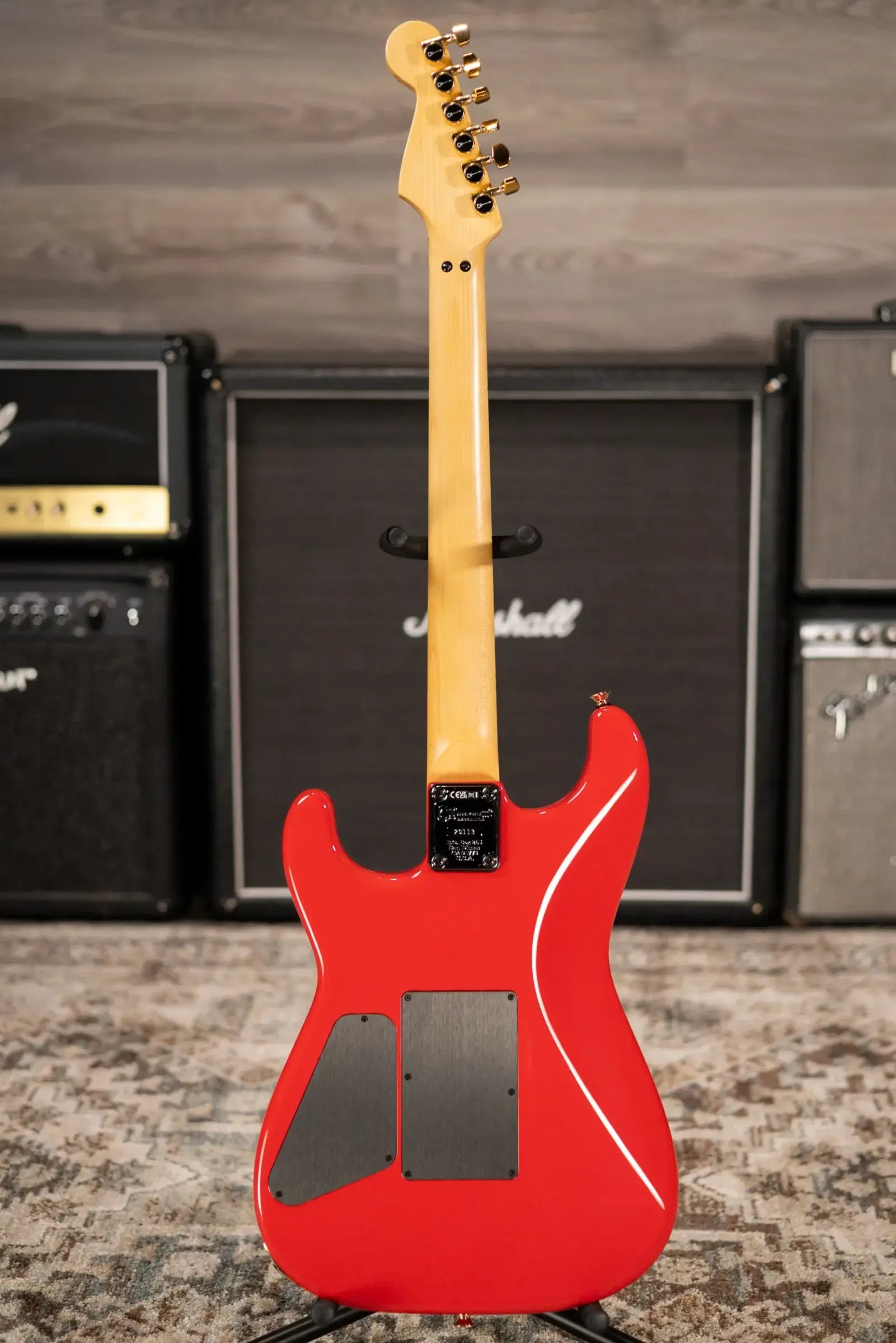

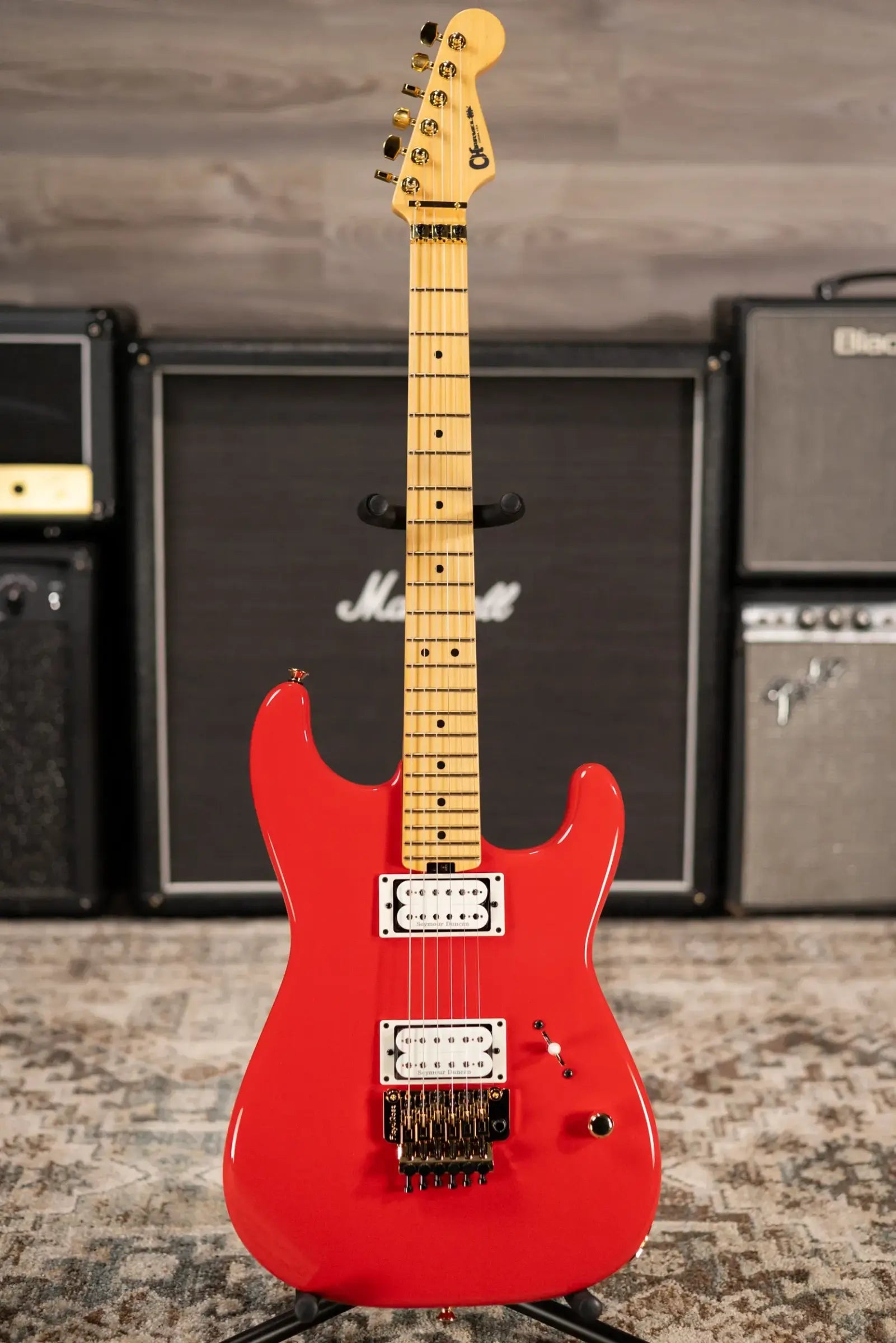

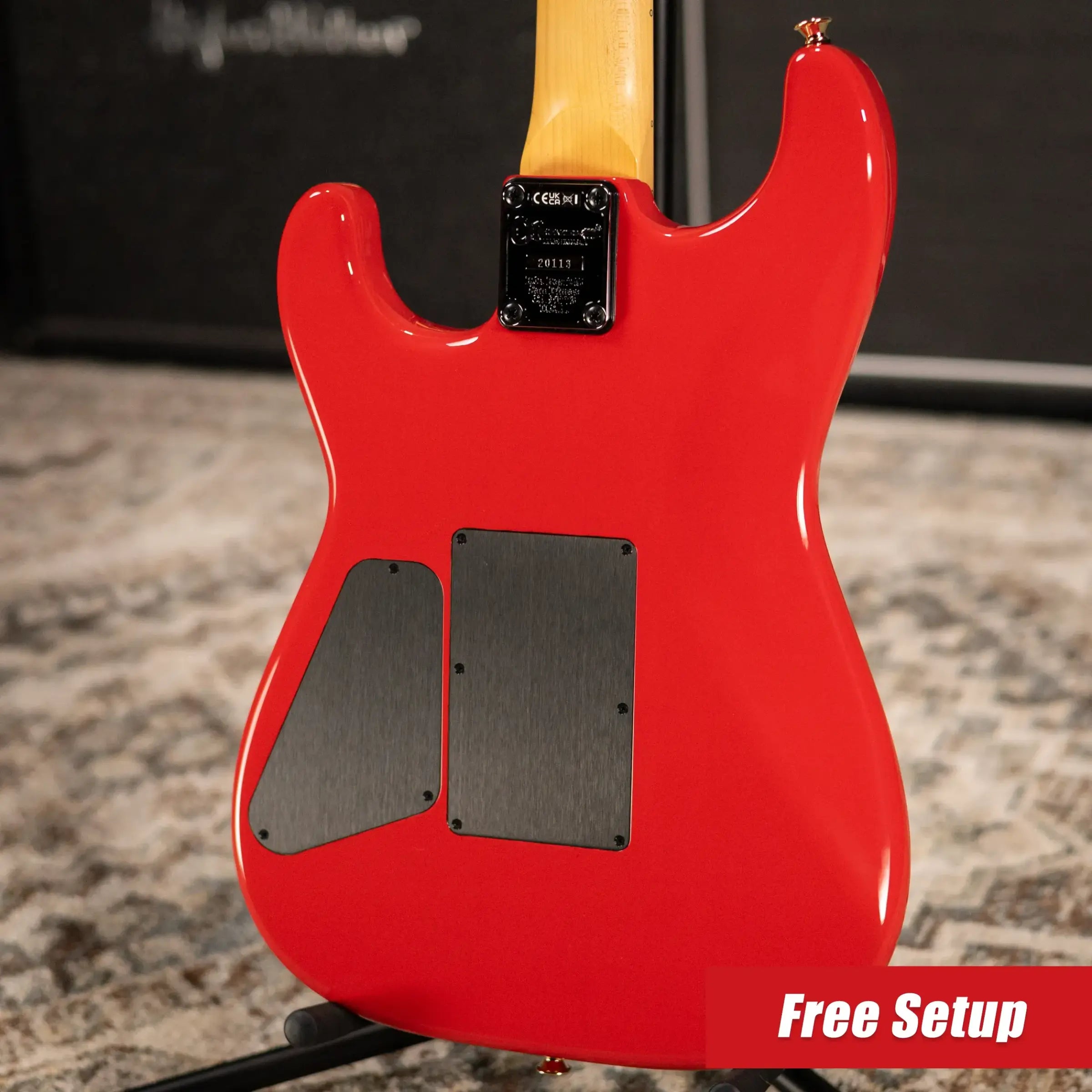

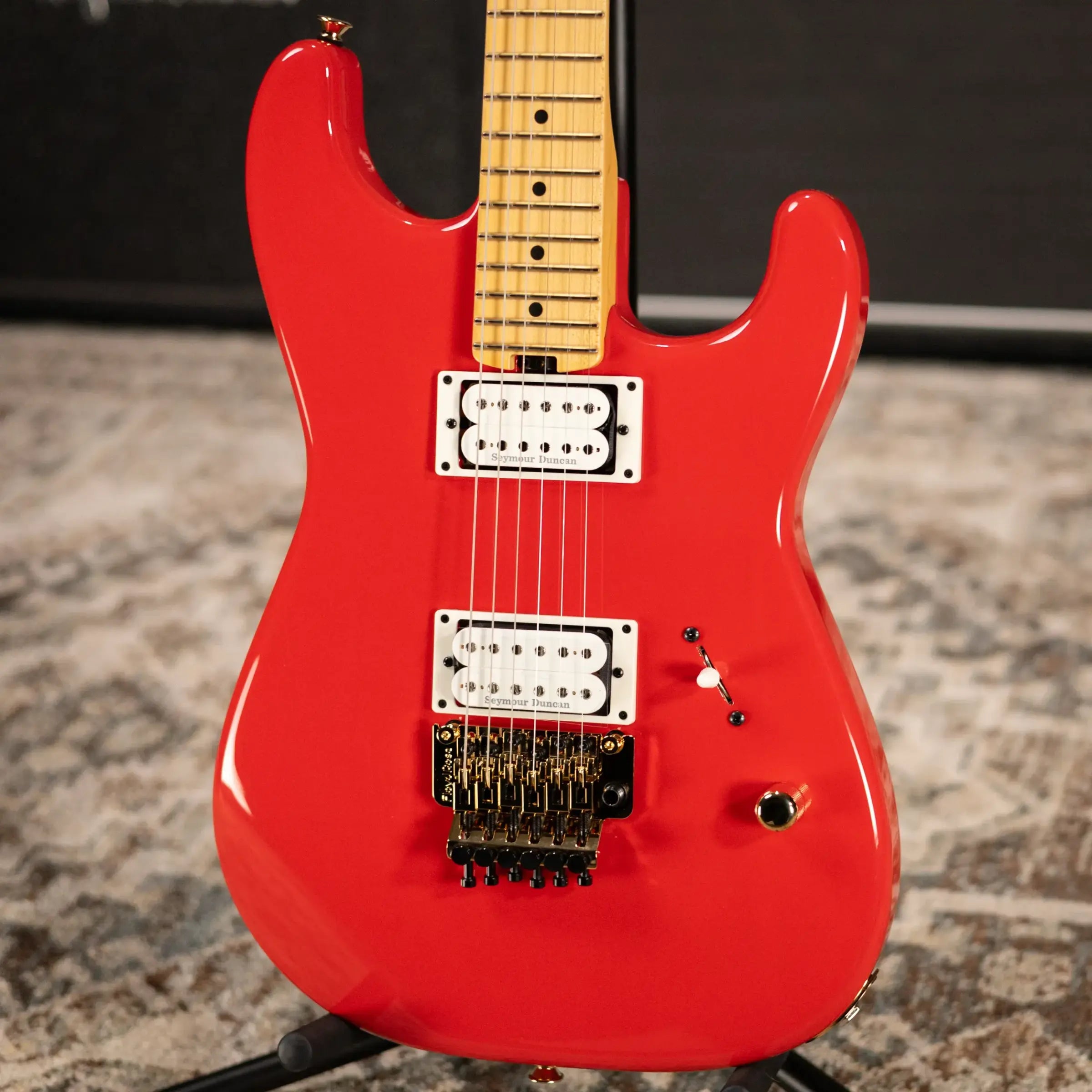

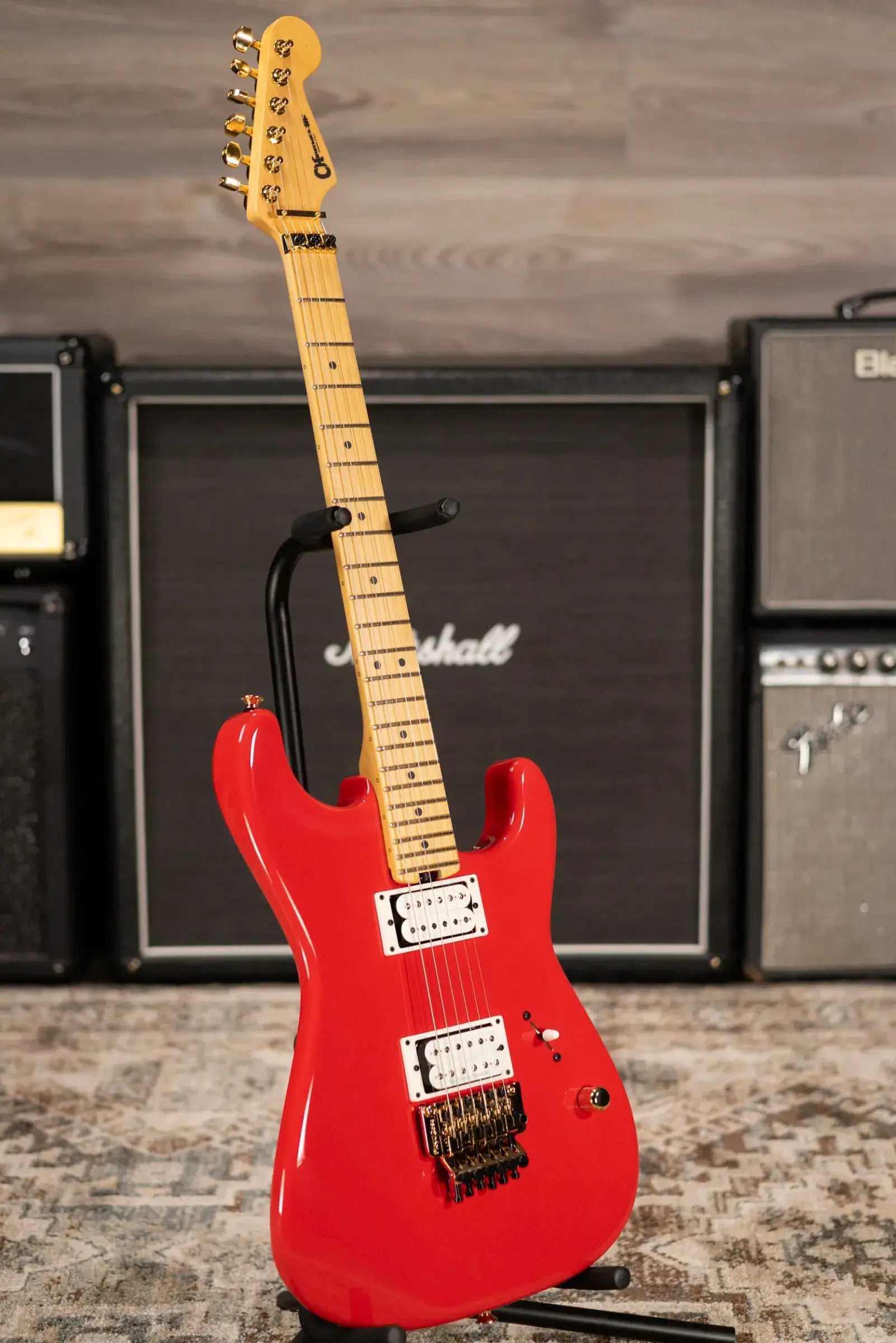

-YOU ARE VIEWING PHOTOS OF THE ACTUAL GUITAR BEING SOLD!

This brand new 8 lb 1 oz Charvel will ship insured, fully set up, and inspected from Rapid City, SD.

Buy risk free with our 14 day - full refund, less shipping, return policy. Check out our shop policies for more details.

The Charvel American Neo-Classic San Dimas Style 1 captures everything players have loved about Charvel since the golden age of high-performance guitars while adding the refinements today's musicians demand. Its classic alder body and unmistakable San Dimas styling deliver the perfect blend of vintage attitude and modern precision, making it equally at home on stages, in studios, or anywhere speed, power, and expression take center stage.

Loaded with the legendary Seymour Duncan JB and '59 humbucker combination, this guitar covers an incredible range of tones with ease. From warm, expressive cleans and singing lead lines to aggressive rhythm crunch and searing high-gain solos, it responds effortlessly to every playing style. The quartersawn maple neck, reinforced with graphite for exceptional stability, feels fast and comfortable from the very first fret, while the compound-radius fingerboard, jumbo stainless steel frets, and rolled edges make everything from open chords to lightning-fast runs feel smooth and effortless. A top-mounted Floyd Rose 1000 tremolo keeps every dive bomb, flutter, and bend perfectly in tune, giving you the confidence to play without limits.

Built for players who refuse to compromise, the American Neo-Classic San Dimas Style 1 combines iconic Charvel performance with premium craftsmanship and road-ready reliability. Every detail is designed to inspire confidence, helping you focus on your playing instead of your gear. Experience the speed, versatility, and unmistakable feel of the Charvel American Neo-Classic San Dimas Style 1. Available now at Haggerty's Music.

Features / Specs

Highlights

• Series: American Neo-Classic
• Orientation: Right-Handed
• Color: Racing Red

Body

• Body Material: Alder
• Body Finish: Gloss
• Body Shape: San Dimas Style 1
• Body Style: Solid

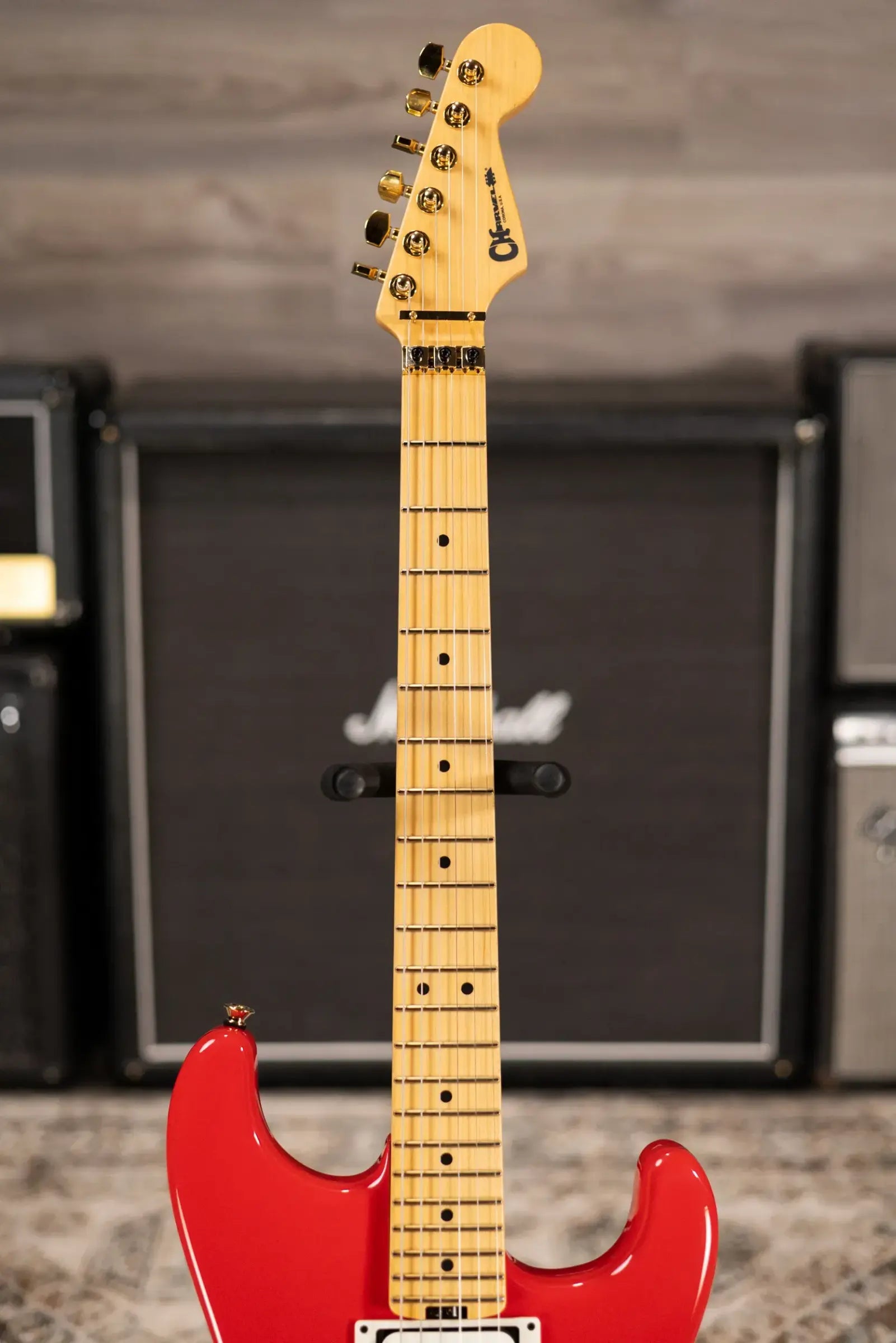

Neck

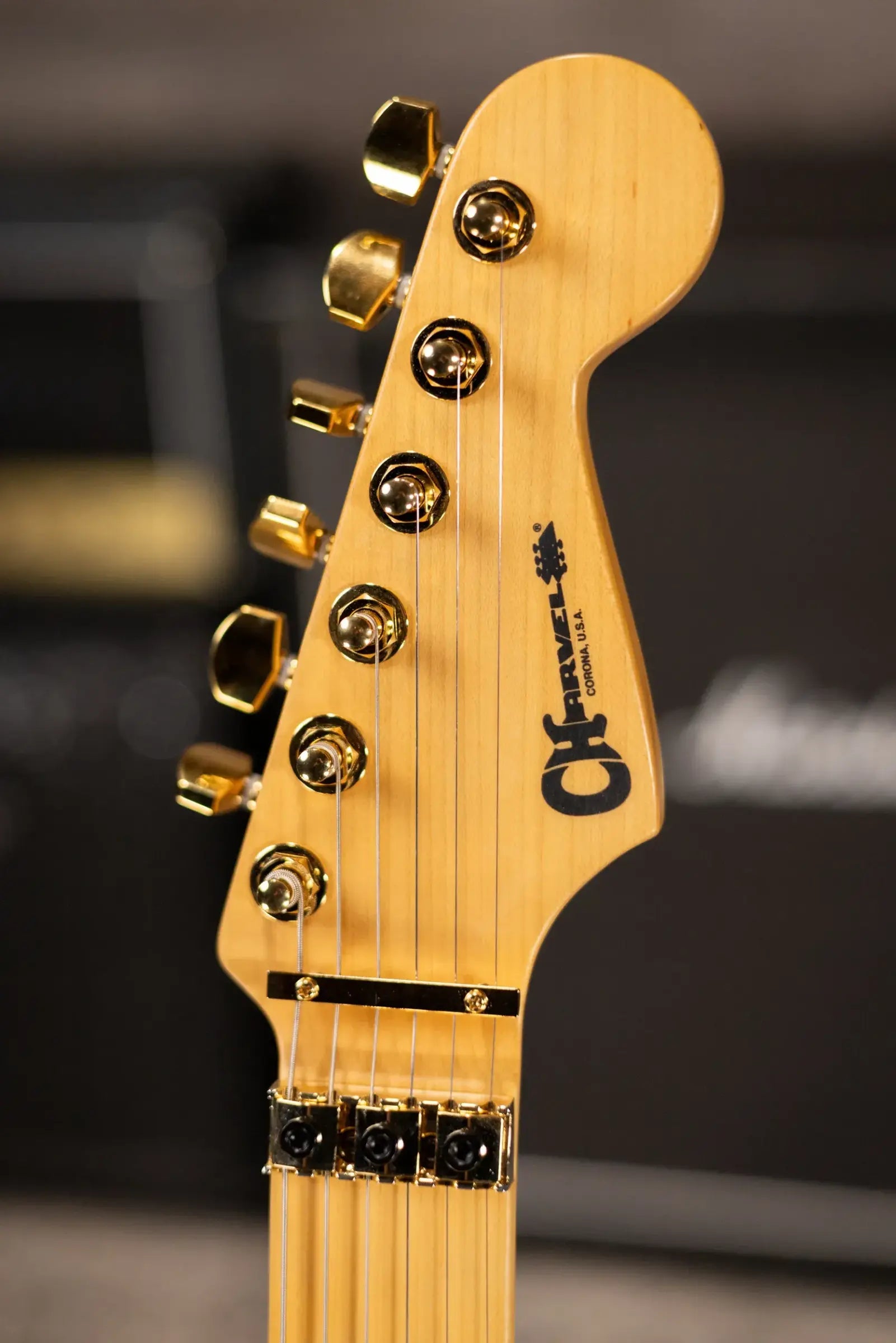

• Headstock Type: Standard
• Neck Material: Quatersawn Maple
• Neck Shape: Speed Neck with Rolled Fingerboard Edges
• Neck Finish: Natural Satin
• Neck Depth: 0.806” at 1st Fret, 0.894” at 12th Fret
• Neck Construction: Bolt-On
• Fingerboard Radius: Compound, 12" to 16"

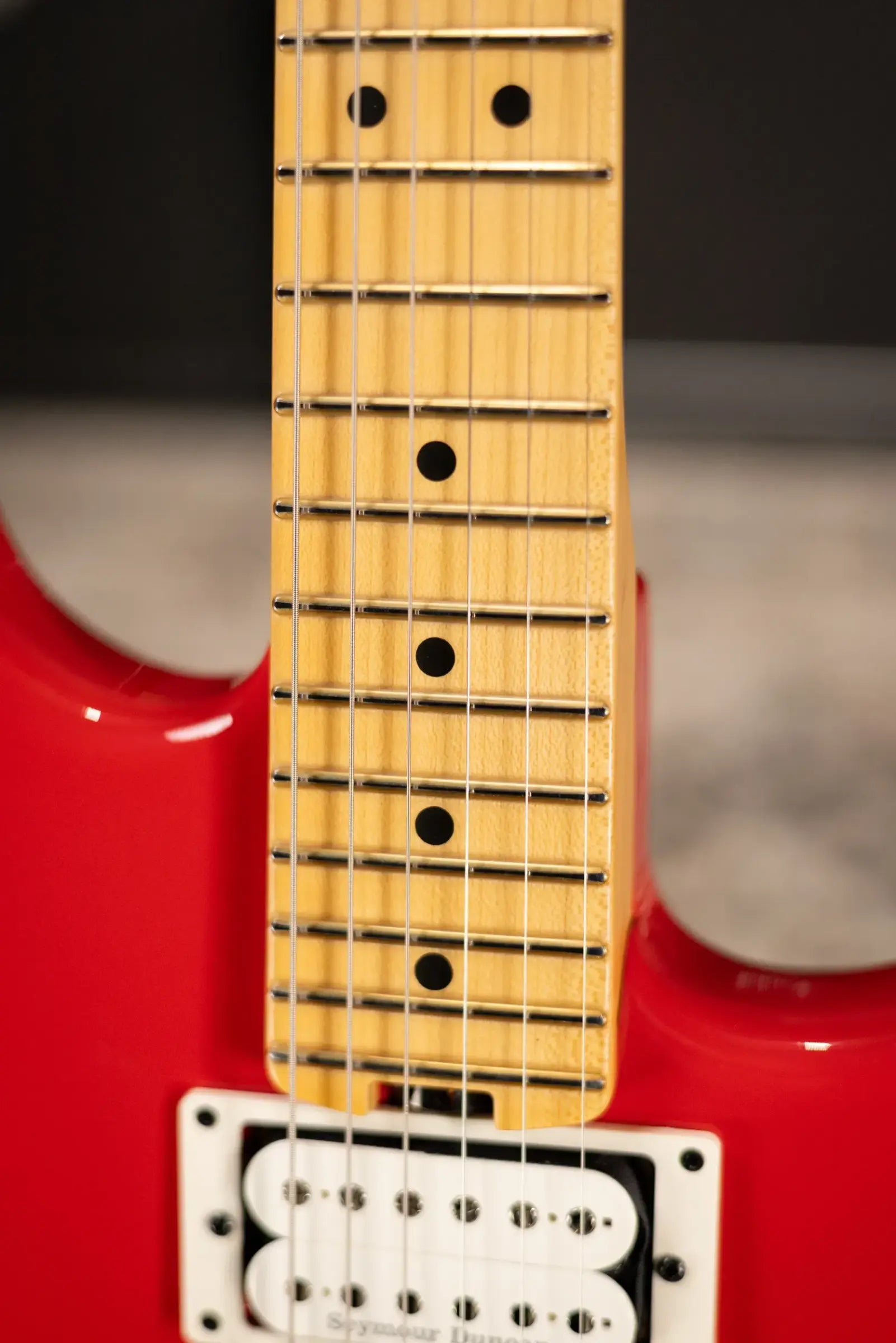

• Fingerboard Material: Quartersawn Maple
• Position Inlays: Black Dot
• Side Dots: Luminlay
• Number of Frets: 22
• Truss Rod Style: Dual Action with Wheel
• Truss Rod Nut: Heel-Mounted Adjustment Wheel
• Nut Material: Floyd Rose 1000 Series Locking
• Nut Width: 1.6875"
• Fret Size: Jumbo
• Scale Length: 25.5"

Hardware

• Bridge: Floyd Rose 1000 Series Double-Locking Tremolo
• Bridge Cover/Tail Piece: None
• Bridge Mounting: Standard
• Pickguard: None
• Pickup Covers: White
• Control Knobs: Dome Style
• Switch Tip: White
• Hardware Finish: Gold

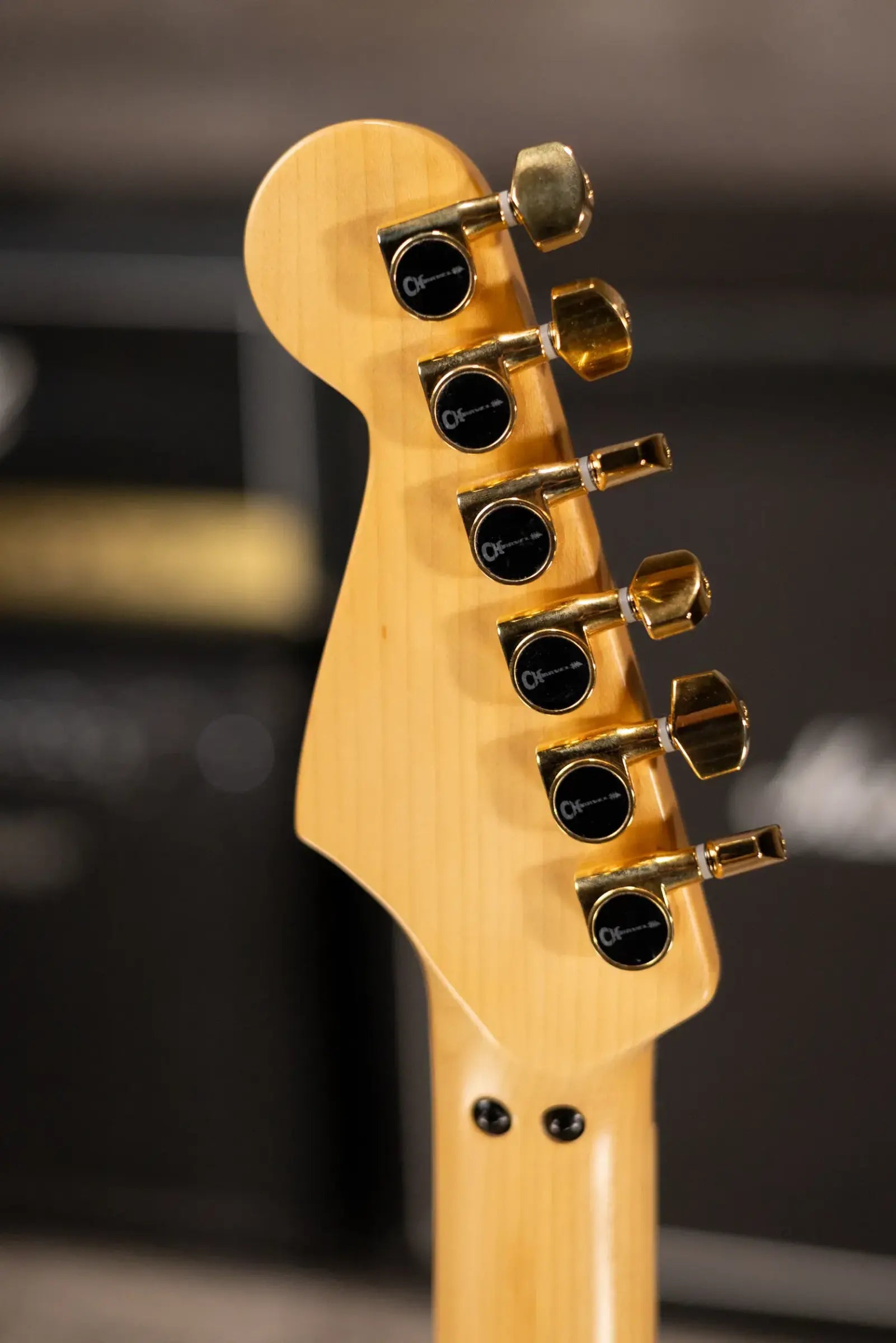

• Tuning Machines: Charvel-Branded Die-Cast
• String Trees: Retainer Bar
• Strings: Nickel Plated Steel (.009-.042 Gauges)
• Tremolo Arm: Yes

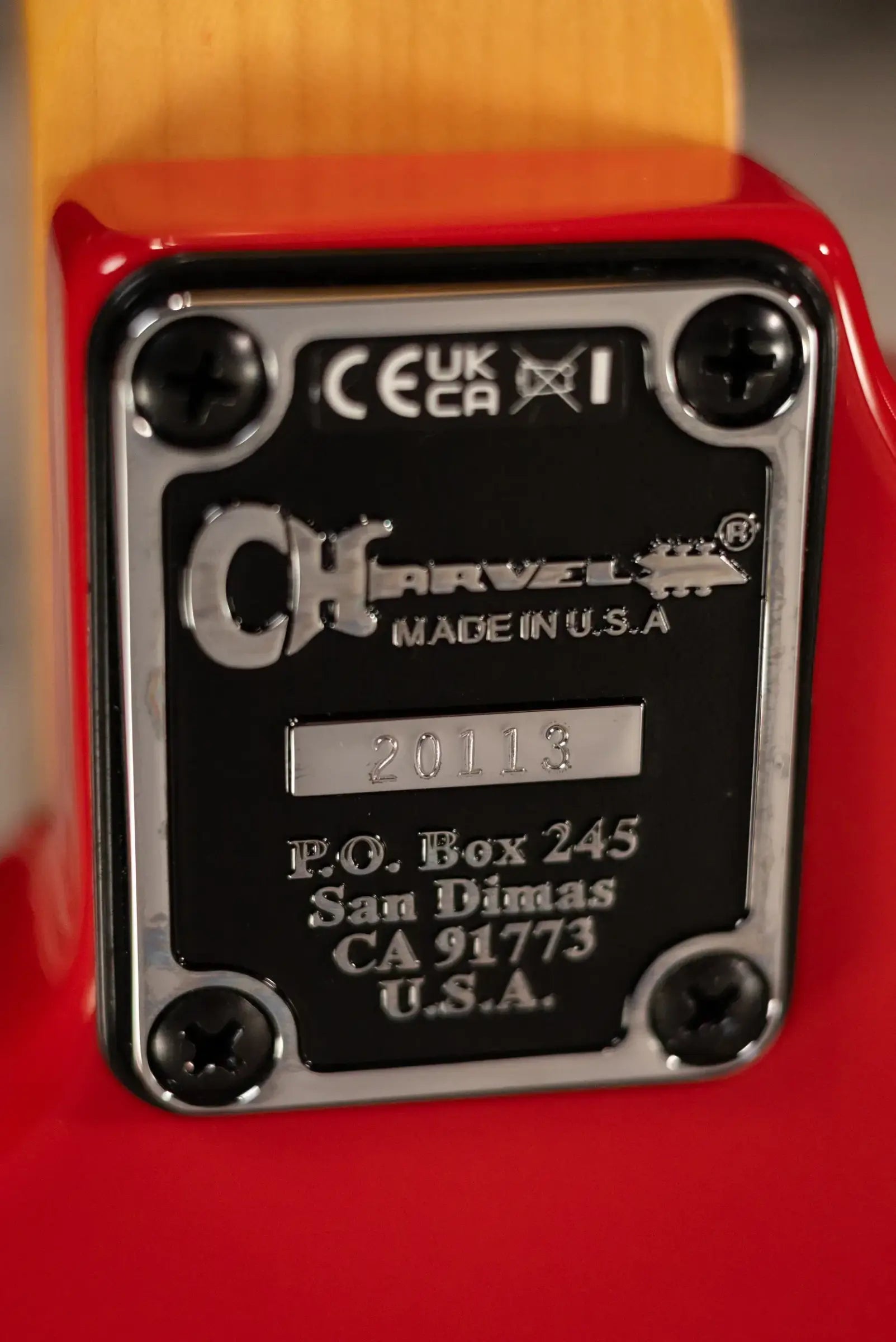

• Neck Plate: 4-Bolt
• Strap Buttons: Two Standard
• Output Jack: 1/4" Side

Electronics

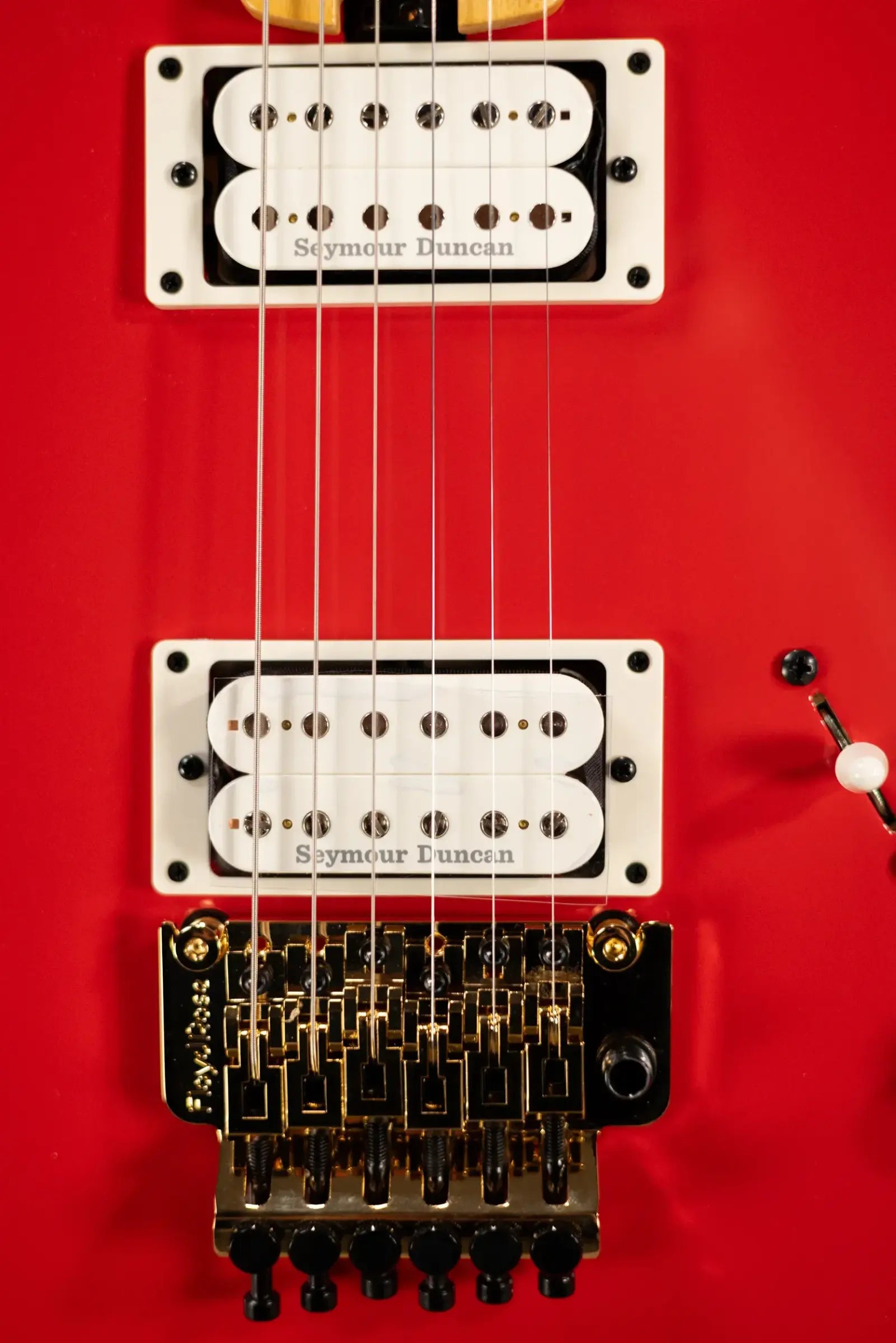

• Pickup Configuration: HH
• Neck Pickup: Seymour Duncan '59 SH-1N
• Bridge Pickup: Seymour Duncan JB TB-4

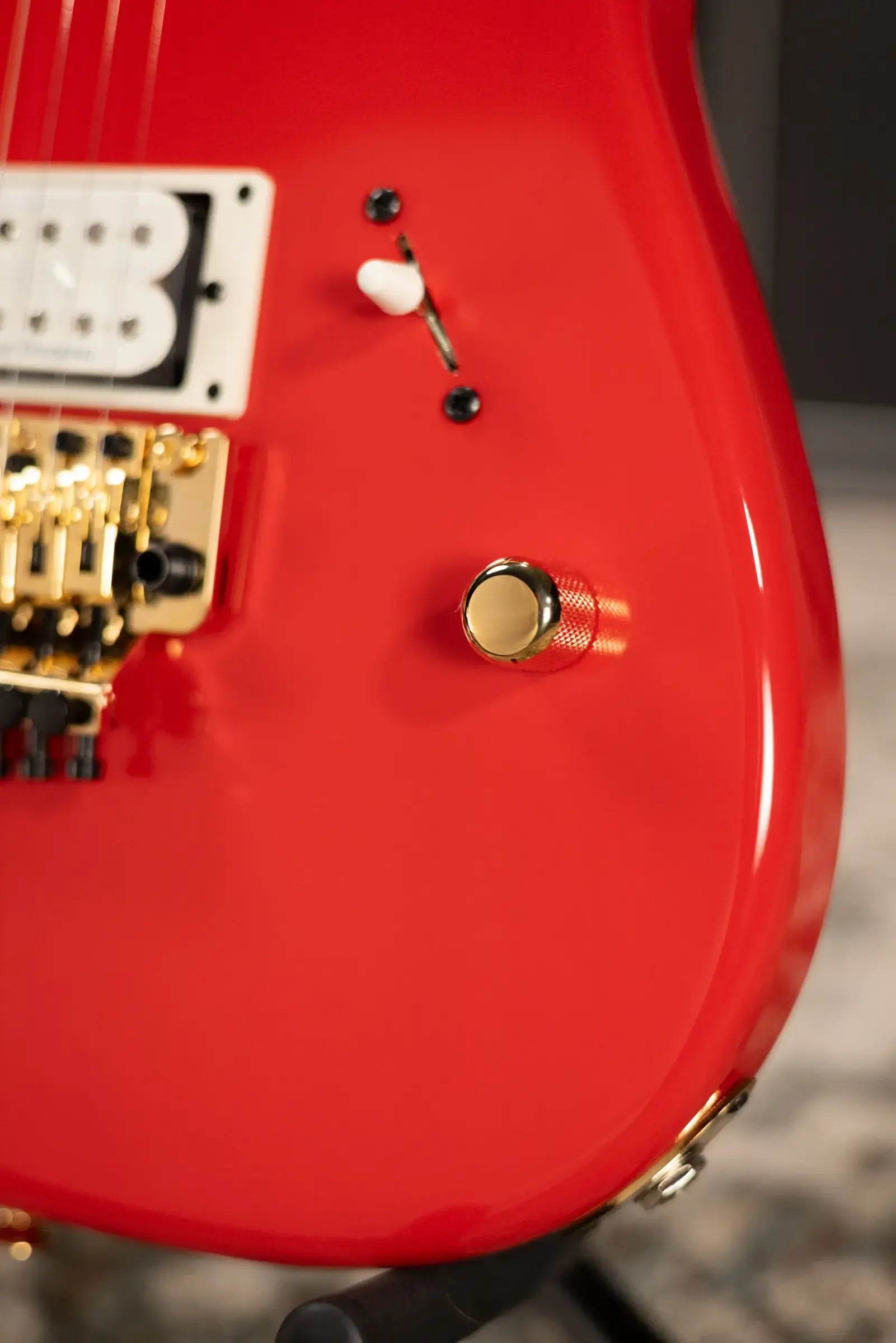

• Controls: Volume
• Switching: 5-Way Blade
  • Position 1. Bridge
  • Position 2. Bridge Outer Coil and Neck Inner Coil
  • Position 3. Bridge and Neck
  • Position 4. Bridge Inner Coil and Neck Outer Coil
  • Position 5. Neck
• Auxiliary Switching: None

Miscellaneous

• Accessories: Tools, Tremolo Arm, Strap

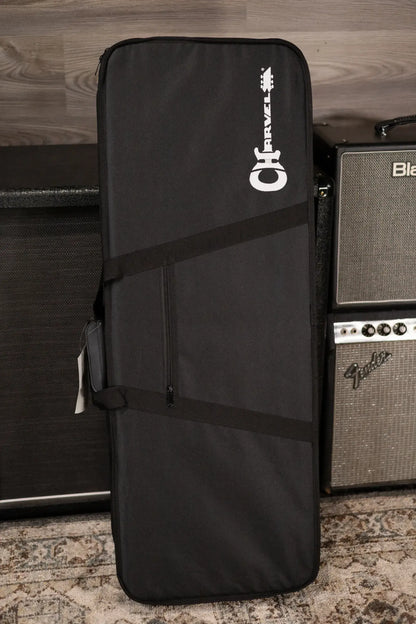

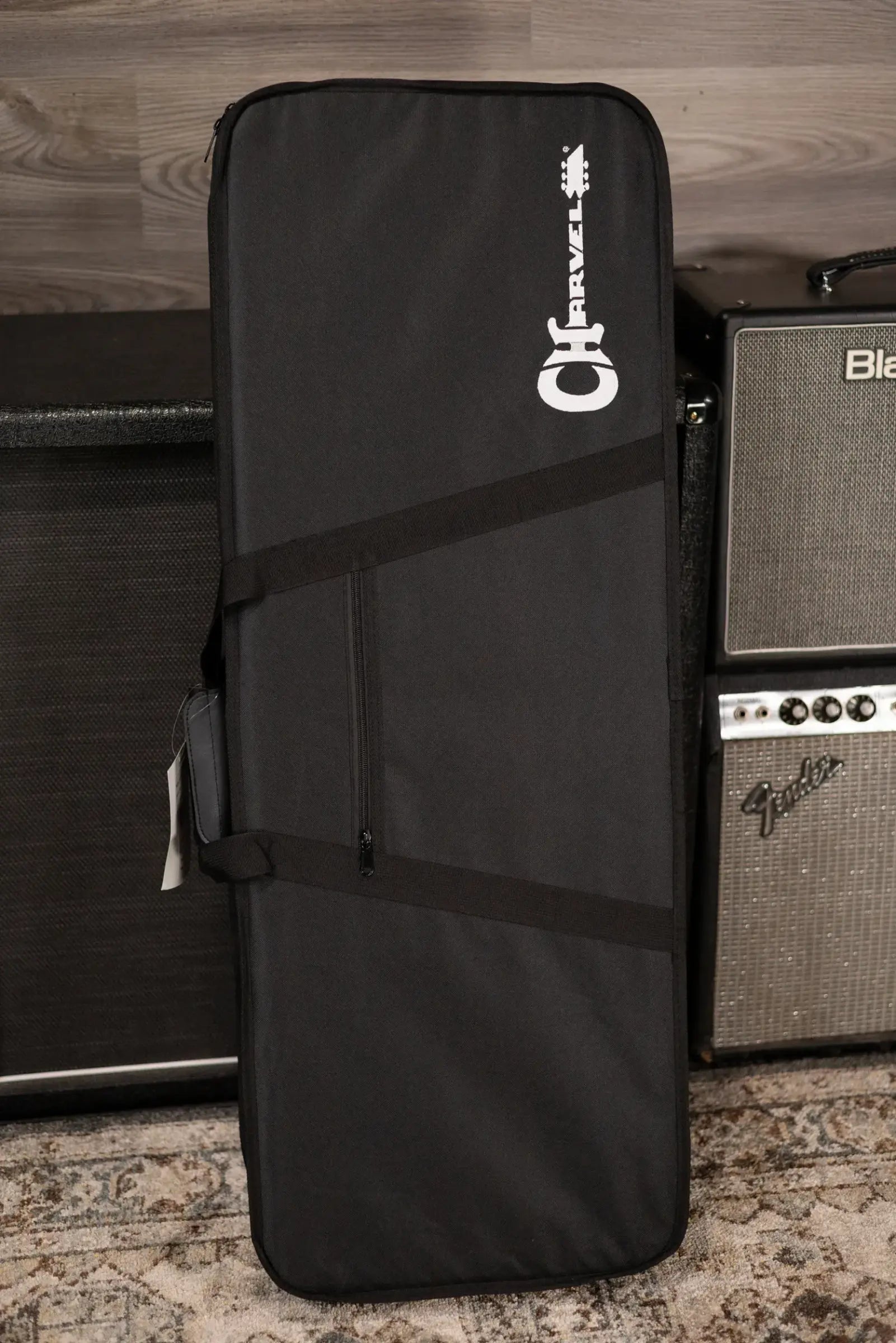

• Case/Gig Bag: Softshell Case
• Serial Number: FCH20113
• Manufacture Date: 2026
